Dors PTM 1153
Bank information and payment terminal
Dors PTM 1152
Bank information and payment terminal
Bank information and payment terminal
Dors PTM 1151
Video surveillance: cameras, video recorder
/02
Application software: ProATM
/01
2D barcode scanner
/03
3G/4G modem
/06
Anti-skimming
/05
Contactless reader
/04
Additional options

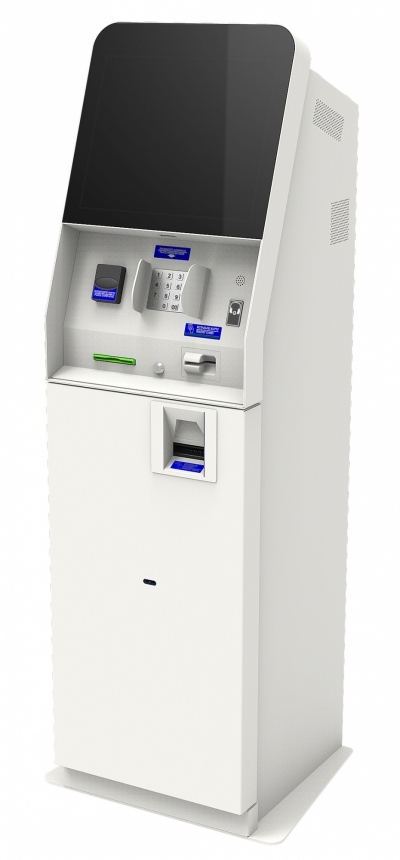

DORS PTM 1151 is designed for payments with banknotes and plastic cards, as well as for informing customers on the account balance and providing reference and promotional information (on bank services, etc.)
Ensures rendering full range of services to the bank customers for account and payments management in 24×7×365 mode.
Equipped with a certified CashCode GX bill acceptor.
For user convenience, the terminal features a 19” touchscreen monitor with protective glass.
Equipped with a certified CashCode GX bill acceptor.
For user convenience, the terminal features a 19” touchscreen monitor with protective glass.
Specifications
240 kg
1620х590х520
12 months
Corporate colors (RAL)
600 VA
SZZT 598
Sankyo ICT3K7
Custom VKP80 II, 80 mm
CashCode GX cassette for 1500 banknotes
CashCode GX with a cassette for 1500 banknotes
Windows 10 IoT
CPU 1,8 GHz, RAM 4 Gb, SSD 256 Gb
19” touchscreen with 6 mm protective glass
Terminal opening, safe door opening, impact detection
Class "A", lever-type
Grade 1 burglary resistance
Weight
Dimensions (H×W×D)
Warranty
Painting
UPS
Keyboard
Card reader
Printer
Additional cassette
Bill acceptor
Operating system
System unit
Monitor
Sensors
Lock
Safe
Video surveillance: cameras, video recorder
/02
Application software: ProATM
/01
2D barcode scanner
/03
3G/4G modem
/06
Anti-skimming
/05
Contactless reader
/04
Additional options

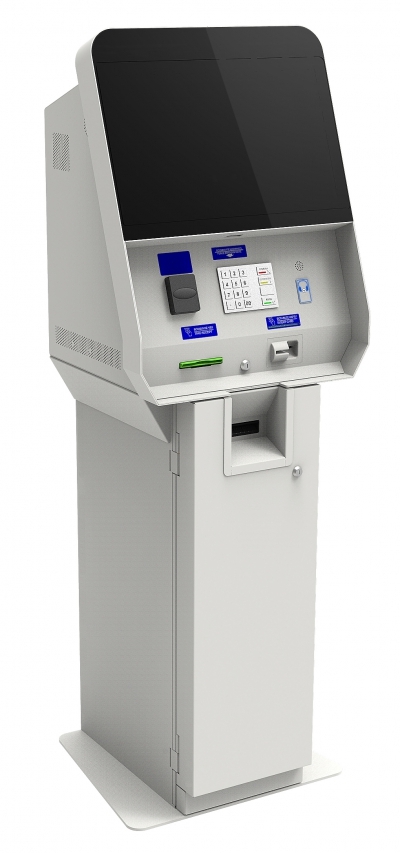

DORS PTM 1152 is designed for payments with banknotes and plastic cards, as well as for informing customers on the account balance and providing reference and promotional information (on bank services, etc.)
Ensures rendering full range of services to the bank customers for account and payments management in 24×7×365 mode.
Equipped with a certified CashCode GX bill acceptor.
For user convenience, the terminal features a 21,5” touchscreen monitor with protective glass.
Equipped with a certified CashCode GX bill acceptor.
For user convenience, the terminal features a 21,5” touchscreen monitor with protective glass.
Specifications
256 kg
1614х542х530
12 months
Corporate colors (RAL)
600 VA
SZZT 598
Sankyo ICT3K7
Custom VKP80 II, 80 mm
CashCode GX cassette for 1500 banknotes
CashCode GX with a cassette for 1500 banknotes
Windows 10 IoT
CPU 1,8 GHz, RAM 4 Gb, SSD 256 Gb
21,5” touchscreen with 3 mm protective glass
Terminal opening, safe door opening, impact detection
Class "A", lever-type
Grade 1 burglary resistance
Weight
Dimensions (H×W×D)
Warranty
Painting
UPS
Keyboard
Card reader
Printer
Additional cassette
Bill acceptor
Operating system
System unit
Monitor
Sensors
Lock
Safe
Video surveillance: cameras, video recorder
/02
Application software: ProATM
/01
2D barcode scanner
/03
3G/4G modem
/06
Anti-skimming
/05
Contactless reader
/04
Additional options

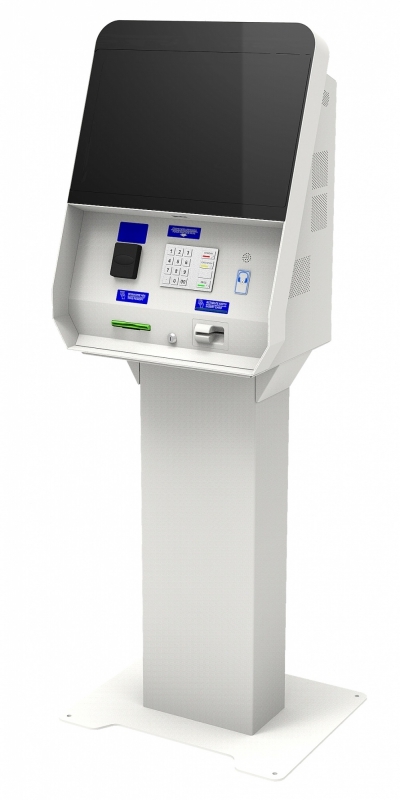

DORS PTM 1153 is designed for payments with banknotes and plastic cards, as well as for informing customers on the account balance and providing reference and promotional information (on bank services, etc.)
Used in queue management systems.
For user convenience, the terminal features a 21,5” touchscreen monitor with protective glass.
For user convenience, the terminal features a 21,5” touchscreen monitor with protective glass.
Specifications
62 kg
1614х455х400
12 months
Corporate colors (RAL)
600 VA
SZZT 598
Sankyo ICT3K7
Custom VKP80 II, 80 mm
-
-
Windows 10 IoT
CPU 1,8 GHz, RAM 4 Gb, SSD 256 Gb
21,5” touchscreen with 3 mm protective glass
Terminal opening, impact detection
Jin Tay
-
Weight
Dimensions (H×W×D)
Warranty
Painting
UPS
Keyboard
Card reader
Printer
Additional cassette
Bill acceptor
Operating system
System unit
Monitor
Sensors
Lock
Safe
DORS ADM 2020 M5
Automated deposit machine
DORS ADM 2020
Automated deposit machine
Automated deposit machine
ADM 1071
Acceptance type
Single-note acceptance
2D
System unit
Weight
Banknote acceptor
Printer
Monitor
7″ touchscreen
CPU 1,8 GHz, RAM 4 Gb, SSD 256 Gb
DORS 210 BA with a 3,500-banknote cassette
Cashino CSN-21, 57 mm
Sensors
Keyboard
Cassette capacity
Number of cassettes
Cassette type
Acceptance speed
Total capacity
Card reader
Dimensions, (WхDхH)
Video surveillance
Scanner
Power supply
180 kg
1 cassette
Deposit cassette
Up to 3,500 banknotes
3,500 banknotes
1 banknote per 0.8 sec
Shock sensor, safe door opening sensor, service zone opening sensor
PIN keyboard with EPP 3-DES encryption module
Hybrid motorized/contactless reader
DVR with a camera
420х450х700 mm
220±10% V ~ 50 Hz
Specifications
Verification of 4 machine-readable features
More than 10 types of banknote authenticity checks
Intelligent anti-Stokes control (iAS)
Remote firmware update capability
Various integration options
Instant fund crediting
More than 10 types of banknote authenticity checks
Intelligent anti-Stokes control (iAS)
Remote firmware update capability
Various integration options
Instant fund crediting
Distinguishing features
ADM 1071 is a new class of compact ADM machines by BVS, designed for the automatic acceptance, counting, authentication, and storage of medium volumes of cash, operating 24/7/365 with online crediting to the customer's account.
- ADM 1071 is equipped with a 7-inch high-resolution touchscreen.
- Customers can enter information using the touchscreen interface.
- ADM 1071 features a system unit designed for industrial automation tasks (24/7 operation, extended temperature range, vibration resistance, etc.).
- Equipped with a motorized hybrid card reader for processing magnetic and chip cards, with an option to install a contactless reader.
- Supports NDC, DDC, and ISO 8583 protocols.
- Can be integrated with the bank’s core banking system (ABS).
- First-class burglar-resistant safe.
- The ADM design separates the safe zone from the service zone.
- Receipt paper replacement in the thermal printer does not require internal access to the ADM.
- An optional vandal-resistant EPP keyboard made of stainless steel can be installed.
Functional capabilities
ADM 1071 has the highest banknote acceptance speed in its class.
- A short banknote intake path not only increases the deposit speed but also minimizes the risk of jams during acceptance.
- Cash is stored in a sealed, key-locked cassette, ensuring secure transportation to the vault or cash processing center.
- A Class 1 safe and integrated security systems allow for secure cash storage until collection.
- High-capacity cassette — more than 3,500 banknotes.
- Separation of safe, service, and operational zones.
- Online crediting of deposited funds to the customer's account.
- Reduced operational costs for cash handling.
The built-in uninterruptible power supply (UPS) in ADM 1071 ensures the correct completion of transactions in case of a power outage.
In the event of an emergency power failure, the automatic deposit machine can finalize ongoing transactions using its integrated backup power source.
Lock
Class "A" lever lock
System unit
Safe
Printer
Monitor
7″ touchscreen
CPU 1,8 GHz, RAM 4 Gb, SSD 256 Gb
Class 1 burglary resistance
Custom TG2480, 80 mm
UPS
Sensors
Bill acceptor
Additional cassette
Keyboard
Card Reader
DORS 820 BA with a 16,000-banknote bag
Bag for 20,000 banknotes
Safe door opening, service area access
Sankyo ICT3K7
SZZT 598
600 VA
Specifications
Distinguishing features
- ADM 2020 is equipped with a 7-inch high-resolution touchscreen.
- The client can enter information using the touchscreen monitor.
- The first-class safe is resistant to burglary.
- Simultaneous acceptance of different currencies and denominations eliminates the need for manual pre-sorting.
- The first-class safe is resistant to burglary.
- Bill acceptor: DORS 820 BA.
- Application software: ProATM.
DORS ADM 2020 is equipped with the DORS 820 BA banknote acceptor, certified by the Central Bank of Russia. DORS 820 BA allows batch deposits of up to 200 banknotes per transaction. The processing and crediting speed is 900 banknotes per minute, and the high-capacity bag (up to 16,000 banknotes) enables fast and efficient large-volume cash deposits in minimal time. The escrow module of the banknote acceptor allows for verification, counting, and, if necessary, banknote return.
DORS ADM 2020 is an automated deposit machine – a hardware and software complex designed for the automated counting, authentication, storage, and online crediting of cash to a settlement account, operating 24/7/365.
Security
- The safe complies with Class 1 burglary resistance.
- "A" class lever lock;
- Sensors for safe door opening and service area access;
- Vandal-resistant housing;
- Anchored floor mounting;
- Security sensors.
Additional options
- Surveillance system (DVR, bill acceptor cameras, banknote intake slot camera, portrait camera);
- Application software: ProATM;
- Electromechanical lock with a code panel;
- 2D barcode scanner;
- 3G/4G modem;
Acceptance speed
600/900 banknotes per minute
Bill acceptor
Cassette/Bag capacity
Acceptance type
Monitor
7″ touchscreen
DORS 820 BA
15 000 banknotes
Bundle
Number of verified machine-readable features
Safe (burglary resistance class)
Cassette/Bag fill time
Escrow module
Dimensions (W×H×D, mm)
Printer
~7 minutes
None
Class 1, with a bolt locking system and class "A" lock
Cashino, 58 mm
546*976*521
4
Specifications
Verification of four machine-readable features
More than 10 types of banknote authenticity checks
Remote firmware update capability
Various integration types
Instant fund crediting
More than 10 types of banknote authenticity checks
Remote firmware update capability
Various integration types
Instant fund crediting
DORS ADM 2020 M5 is a compact software and hardware system designed to automate the processing and self-collection of medium volumes of cash in a 24×7×365 mode with online crediting of funds to the client's account.
